2007-2013 BMW 3-SERIES E93 WOOD TRIM M CCC CONVERTIBLE

BMW 3-Series Alcantara Wood Trim M CCC Convertible

Refresh your 2007–2013 BMW 3-Series E93 Convertible interior with OEM-core wood trim re-trimmed to your spec. Each piece is a custom made, OEM-direct replacement that mounts to factory points and retains OEM functions (ashtray, vents, mounting clips, wiring) for a clean plug-and-play swap.

Part Numbers

• Cover, dashboard, nutwood, left — 51456985538 source
• Cover, dashboard, nutwood, right — 51456985540 source
• Decor strip, left doors (burr walnut/Nussbaumwurzel) — 51416958235 source source
• Decor strip, right doors (burr walnut/Nussbaumwurzel) — 51416958236 source
• Decorative strip trim panel, rear left (burr walnut) — 51436958247 source source
• Decorative strip trim panel, rear right (burr walnut) — 51436958248 source
• Trim/cover, center console, walnut, front — 51169170945 source
• Cover, rear console (front surface), wood — 51166960678 source
• CCC iDrive ashtray/center surround (wood) — 51167137480 source source

Compatibility with other chassis'

The dashboard wood covers 51456985538 (LH) and 51456985540 (RH) show fitment across E90/E92/E93 (sedan/coupe/convertible) and E90/E92/E93 M3 per BMW fitment data, so they are shared within the E9x generation where the trim option applies. The door and rear quarter decorative strips (51416958235, 51416958236, 51436958247, 51436958248) are listed for E92/E93 two-door models; verify against your interior option (S4ABA burr walnut or equivalent) before ordering. The CCC iDrive ashtray surround 51167137480 is specific to early E93/E92 vehicles with the CCC controller; later CIC cars use different center pieces. Fitment references: BMWPartsDeal, BMWPartsDeal, BMWPartsDeal (Fine Wood Trim), ECS Tuning, 51167137480 reference.

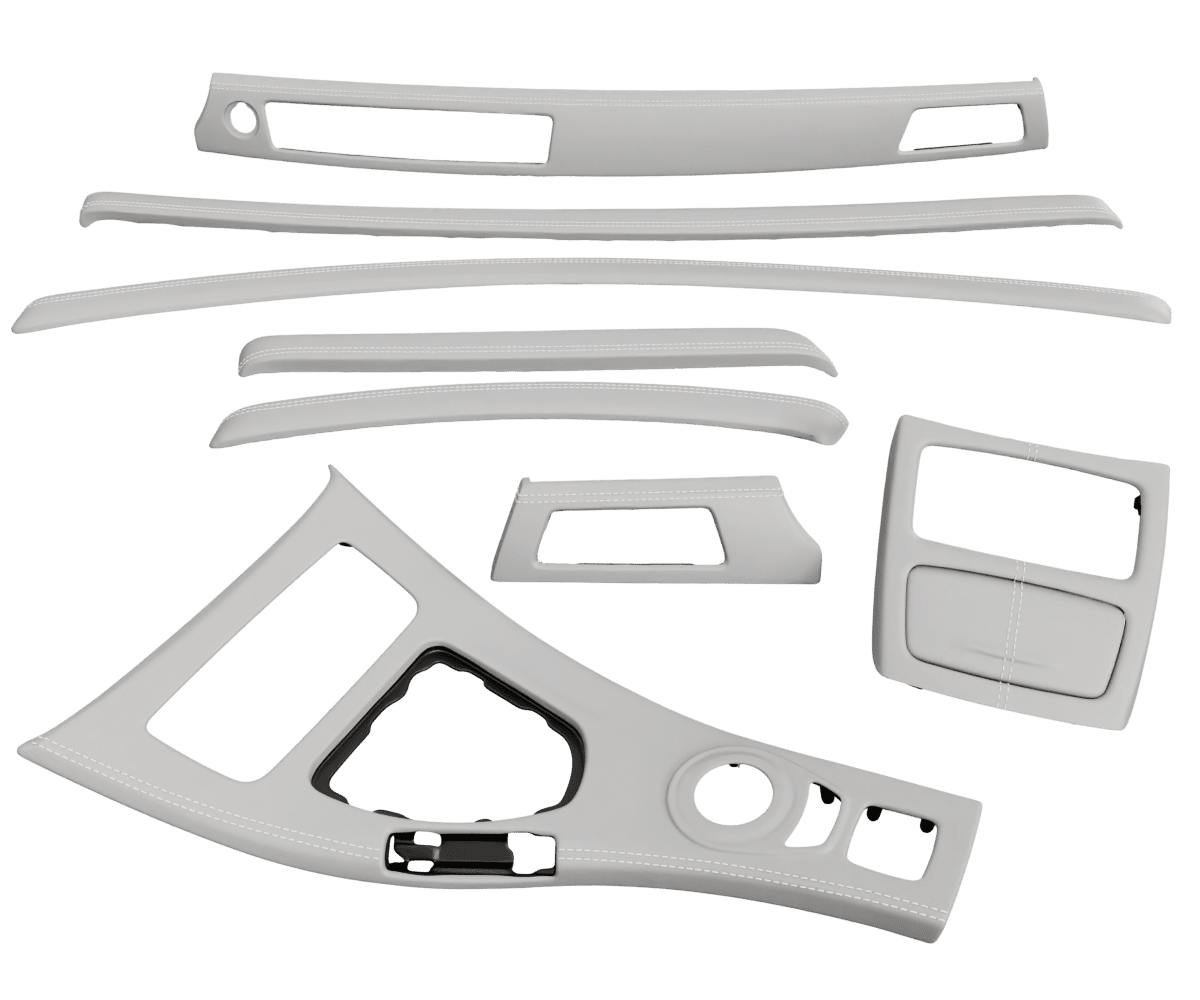

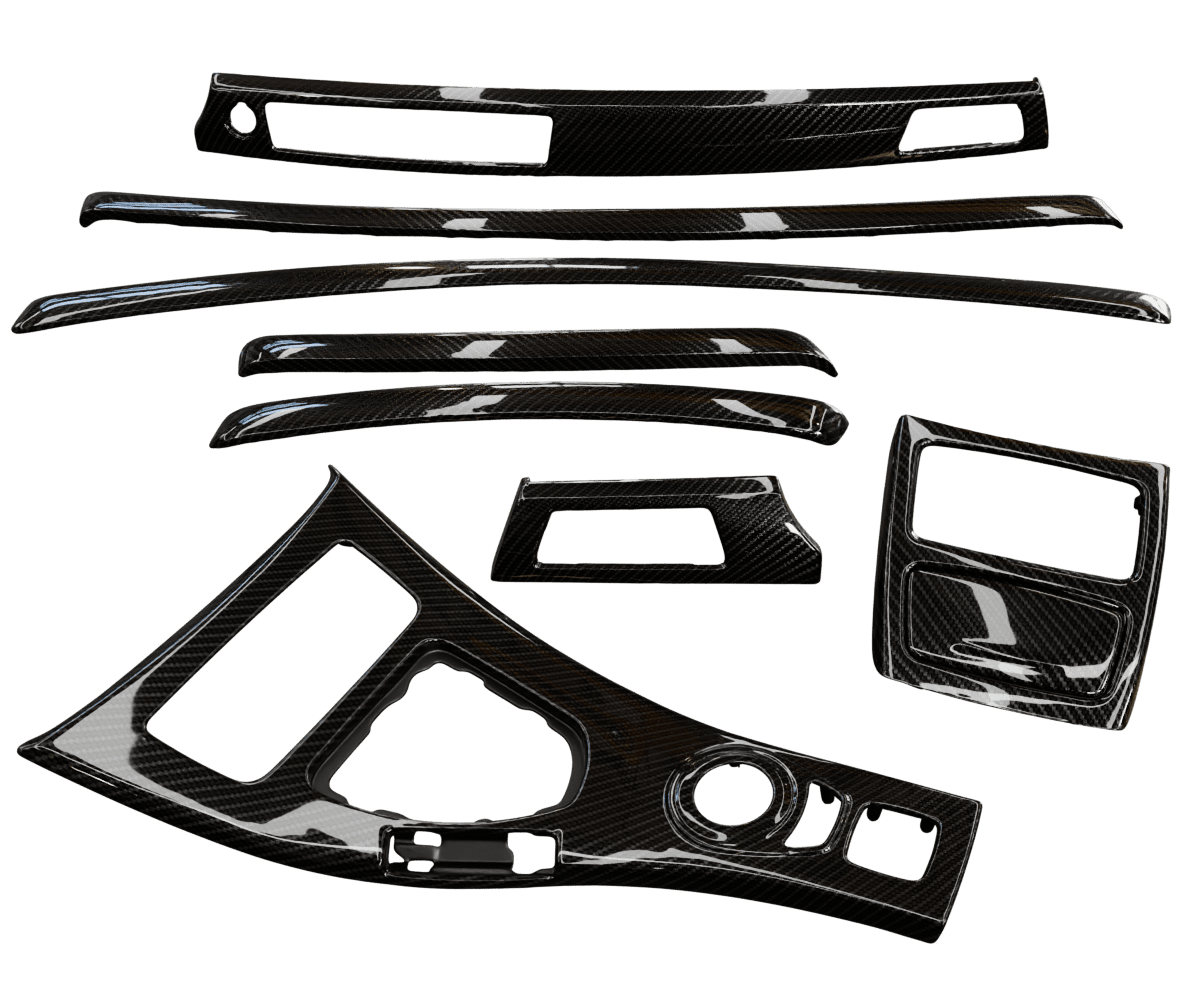

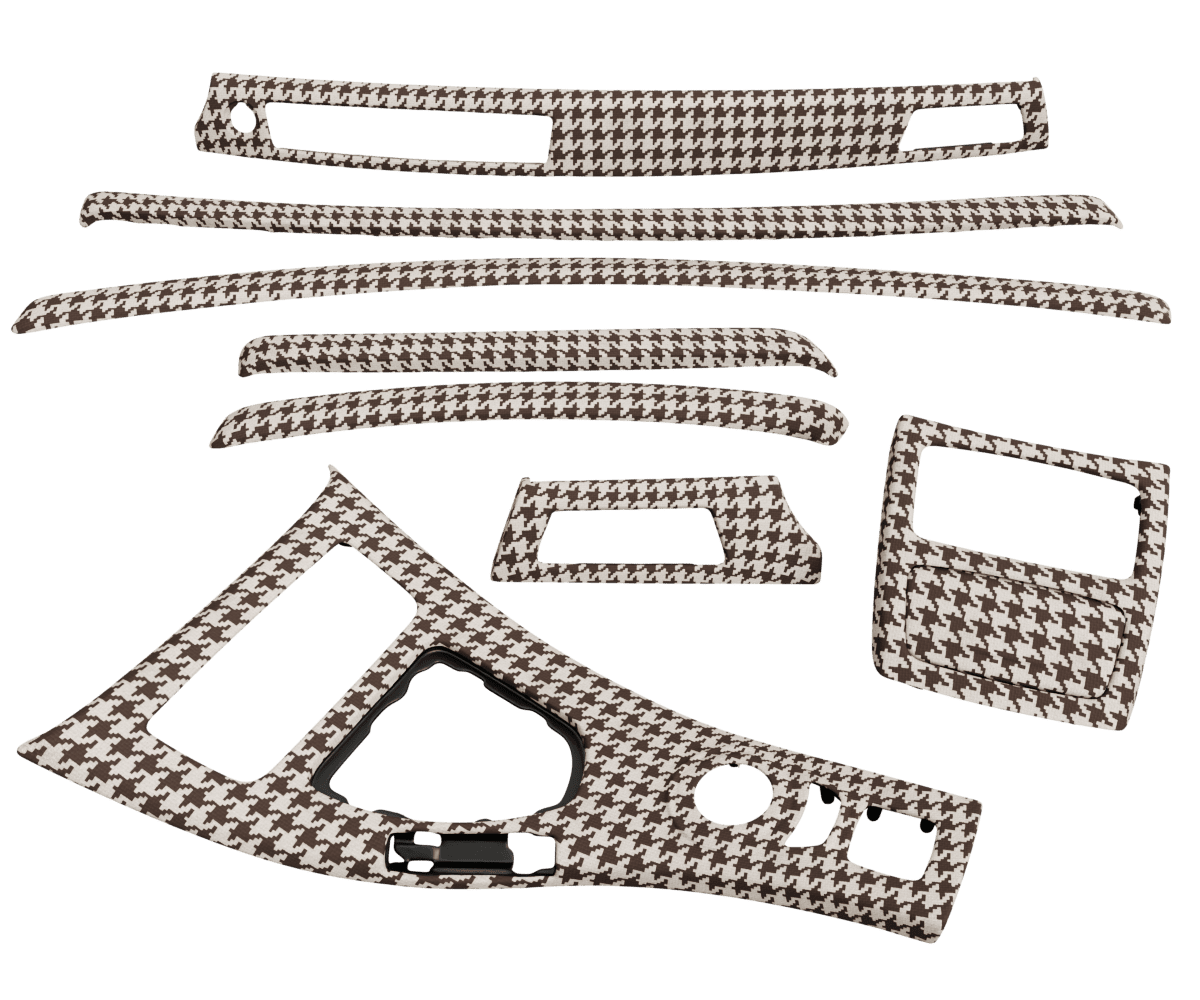

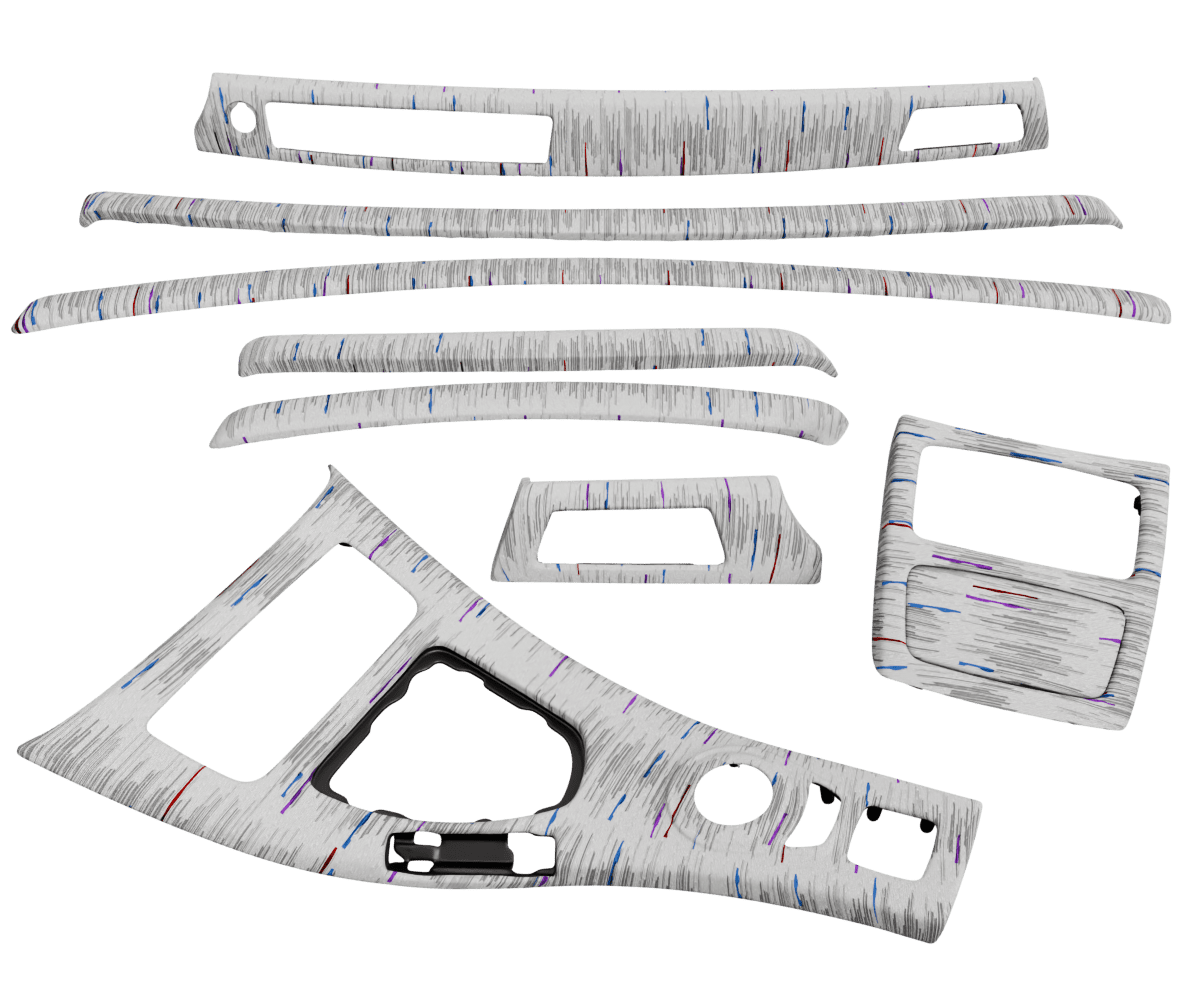

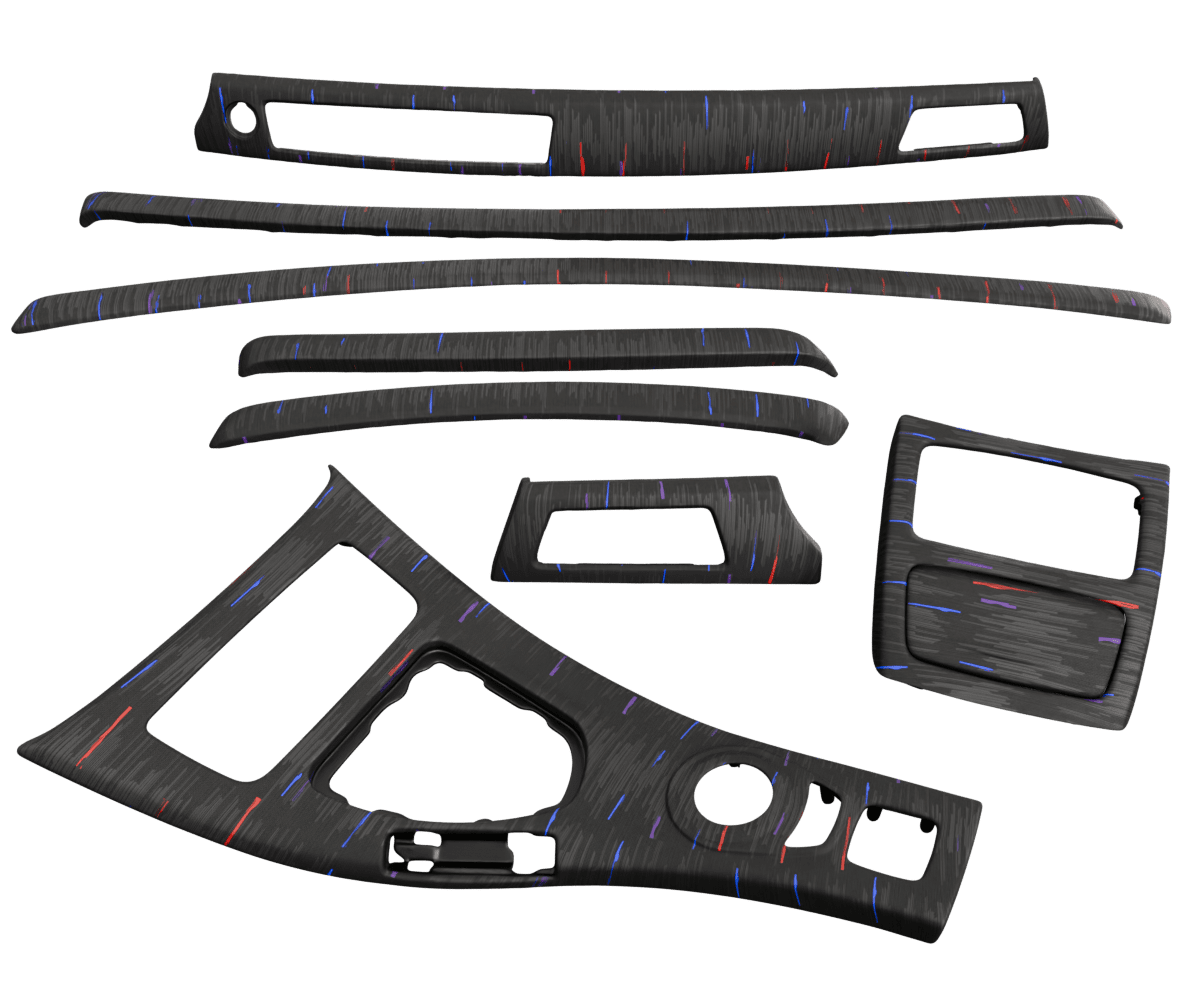

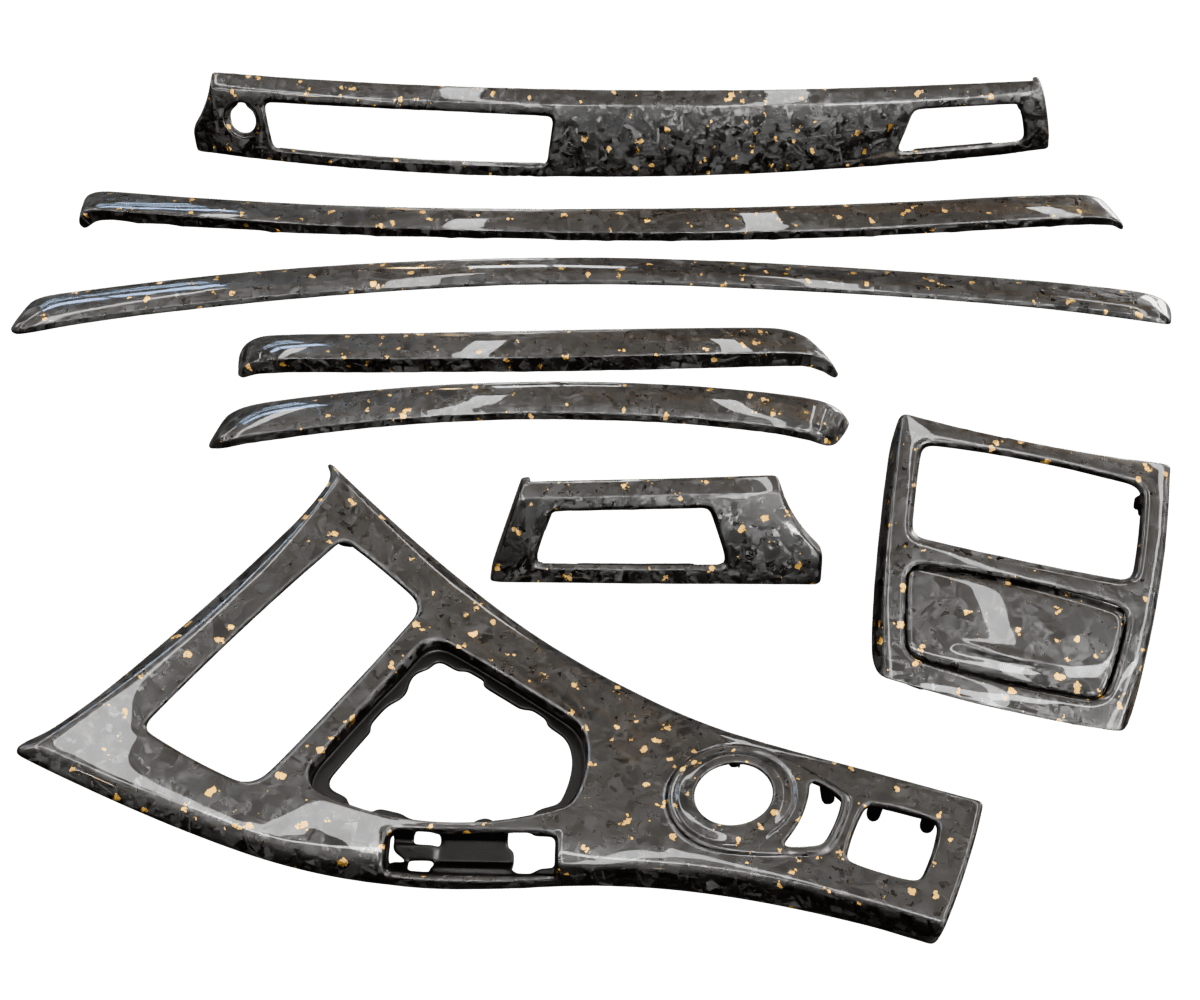

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

We rebuild OEM trim cores to your specification—Alcantara wrap, Forged Carbon Fiber overlay, classic Carbon Fiber, or Nappa leather. Because we start with genuine BMW cores (the part numbers above), the finished parts are OEM-direct replacements that retain factory mounting tabs, alignment pins and clearance for vents, buttons and the CCC ashtray unit. Each set is custom made for color, weave and stitch direction to match your 3-Series program.

Installation tools needed

• Trim removal tool kit (nylon)
• T20 Torx driver
• T25 Torx driver
• Phillips #2 screwdriver
• Plastic pry tool for vent tabs
• Small pick or flat mini-driver (clip release)
• Microfiber towels and masking tape to protect surrounding panels

OEM+ parts, Direct swap of OEM parts

All parts are built on genuine BMW cores for a true direct swap. No brackets to relocate, no wiring changes—just match your E93’s CCC-era part numbers, choose your finish, and bolt in for an OEM+ result.
