2006-2013 BMW 3-SERIES E92 WOOD TRIM NON-M NON-IDRIVE

BMW 3-Series E92 Alcantara Wood Trim (Non-M, Non-iDrive)

OEM direct-replacement interior trim set for the 2006–2013 BMW 3-Series E92 Coupe (non-M, without iDrive). Each piece is compatible with the factory mounting points and can be custom made in Alcantara, forged carbon, carbon fiber, or Nappa leather to match or upgrade your interior.

Part Numbers

• Dashboard decorative strip – left: 51456985639 (source).
• Dashboard decorative strip – right: 51456985641 / 51456985892 (finish variants) (source 1, source 2, source 3).
• Dash trim panel (wood variant reference): 51456985540 (source).
• Door decorative strip – left (E92/E93): 51416986217 (source).
• Door decorative strip – right (E92/E93): 51416986218 (source 1, source 2).
• Rear center console wood trim cover (E92/E93; Grey Poplar example): 51166966471 (source).
• Rear center console wood trim cover (E92/E93; Dark Bamboo example): 51169223996 (source).
• Center console cover (non-iDrive, finish variants used across E9x): 51169145143 / 51169145145 / 51169133804 (finish and MY vary) (source 1, source 2, source 3).
• Center console base/frame (non-iDrive carrier refs seen across E92/E93): 51167147208 / 51169133804 / 51166940236–37 (carrier/frame supersession set) (ref 1, ref 2).

Notes: BMW assigns different part numbers per finish (e.g., wood species, Piano Black “Diamantschwarz,” Aluminum). Non-iDrive center console trims also vary by transmission (manual vs auto) and production date. Always confirm by VIN in ETK/RealOEM before ordering.

Compatibility with other chassis'

• Many dashboard decorative strips are shared across E90/E92/E93; for example, 51456985892 lists fitment for E90/E92/E93 and is a direct cross-chassis reference for the dash-right strip (finish-coded). (source).
• Door decorative strips 51416986217 (left) and 51416986218 (right) are specific to the two-door body (E92/E93) and do not fit E90 sedan front doors. (source, source).
• Rear center console wood trim covers (e.g., 51166966471, 51169223996) are shared between E92 and E93 coupes/convertibles. (source 1, source 2).

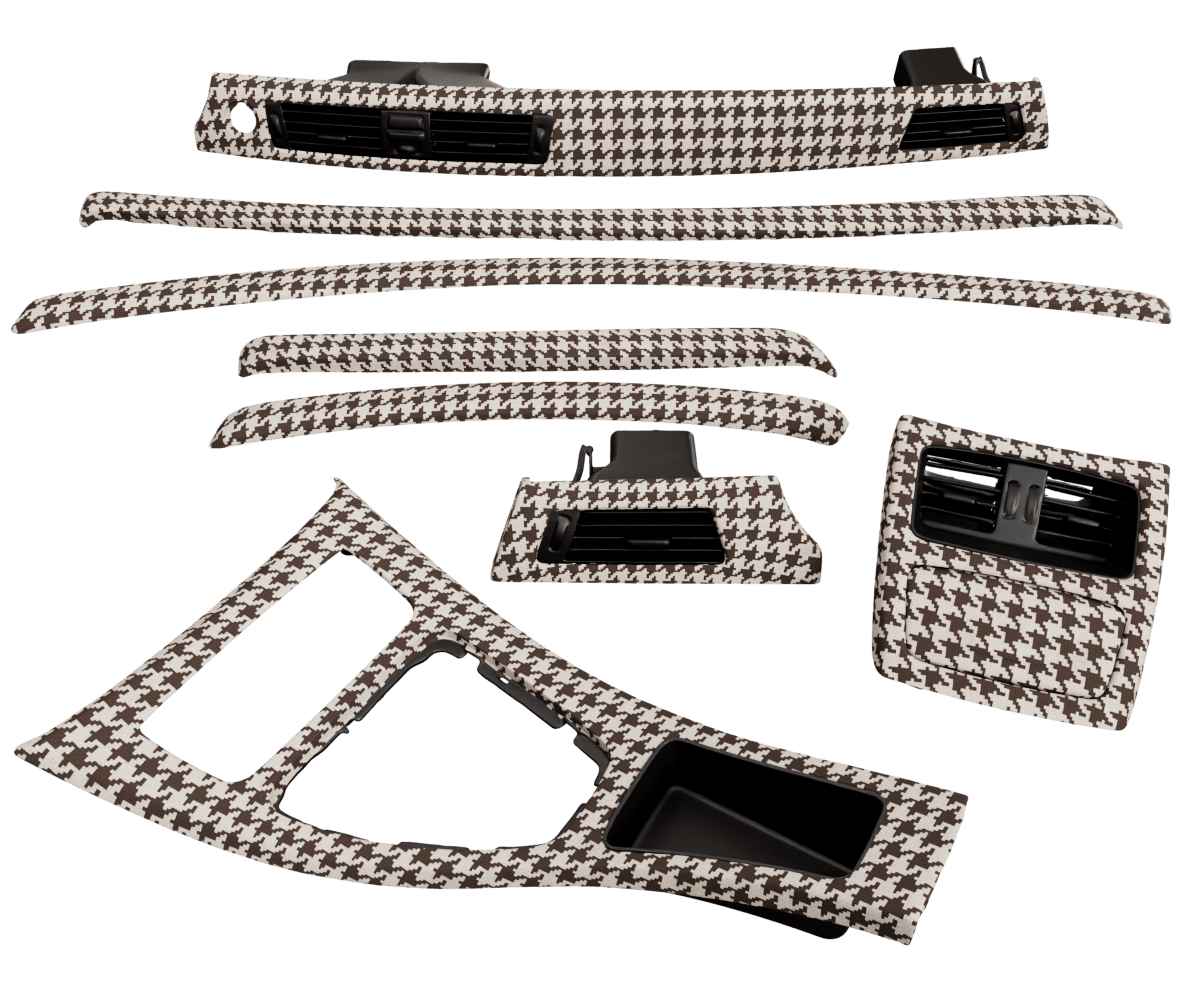

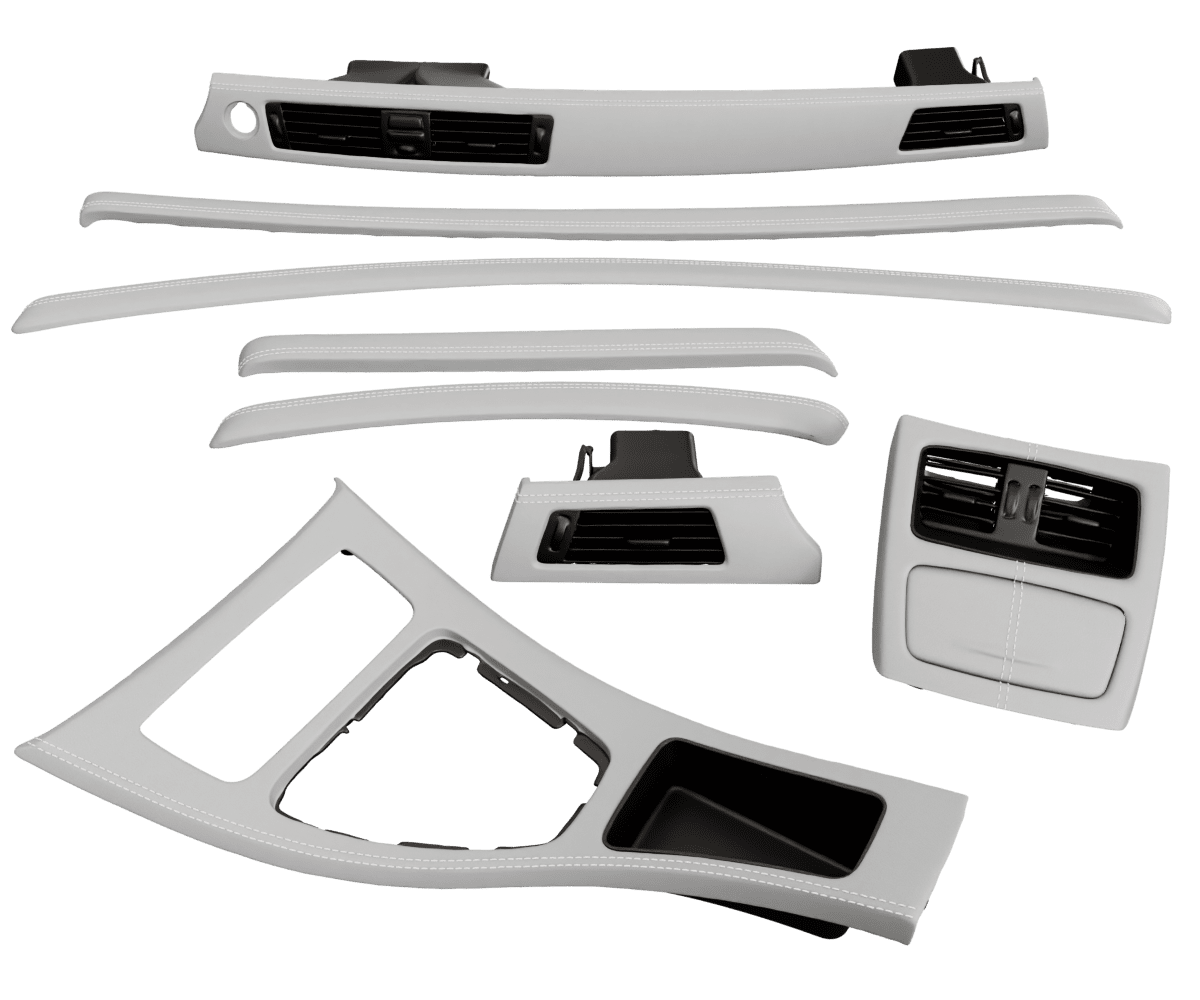

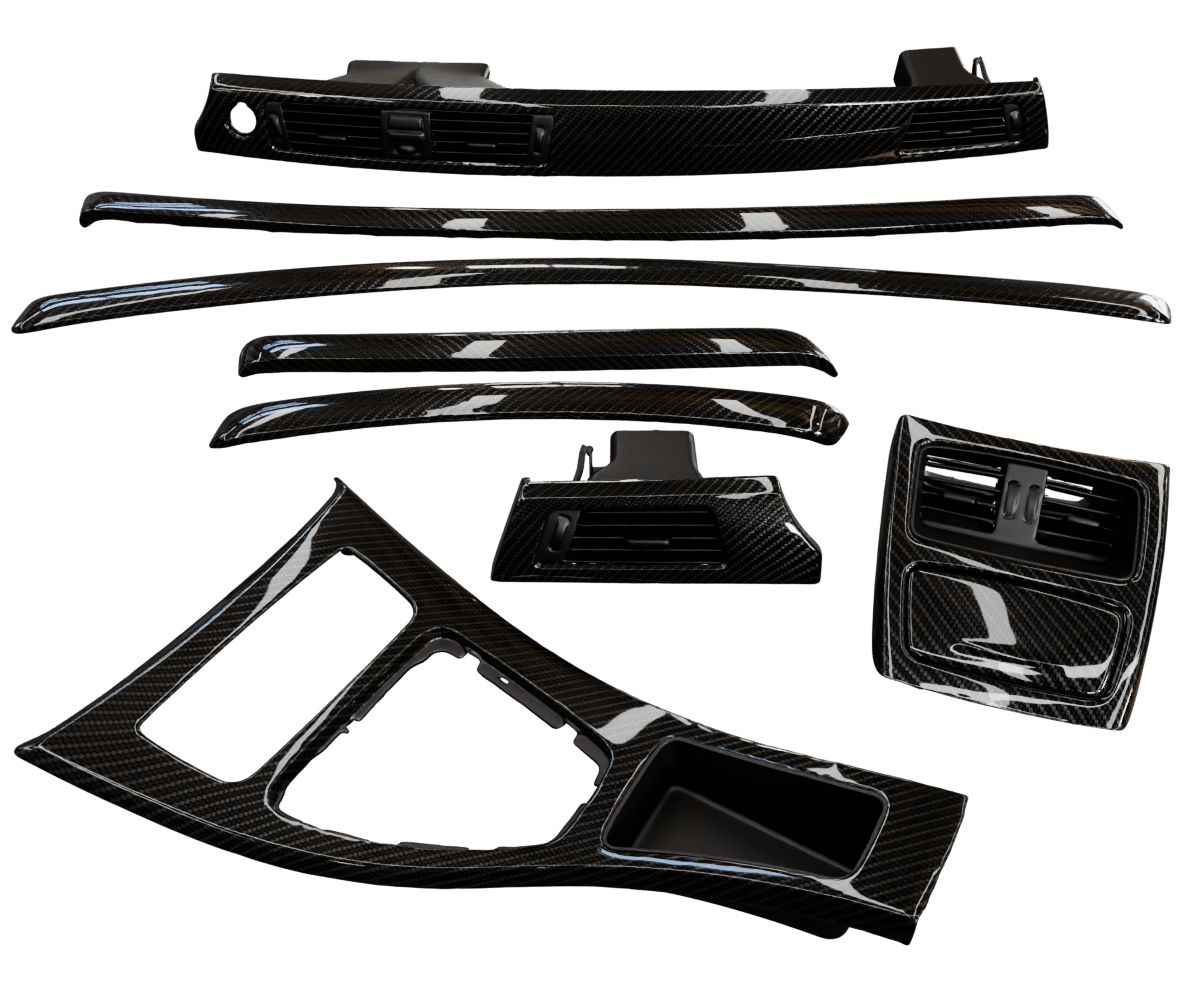

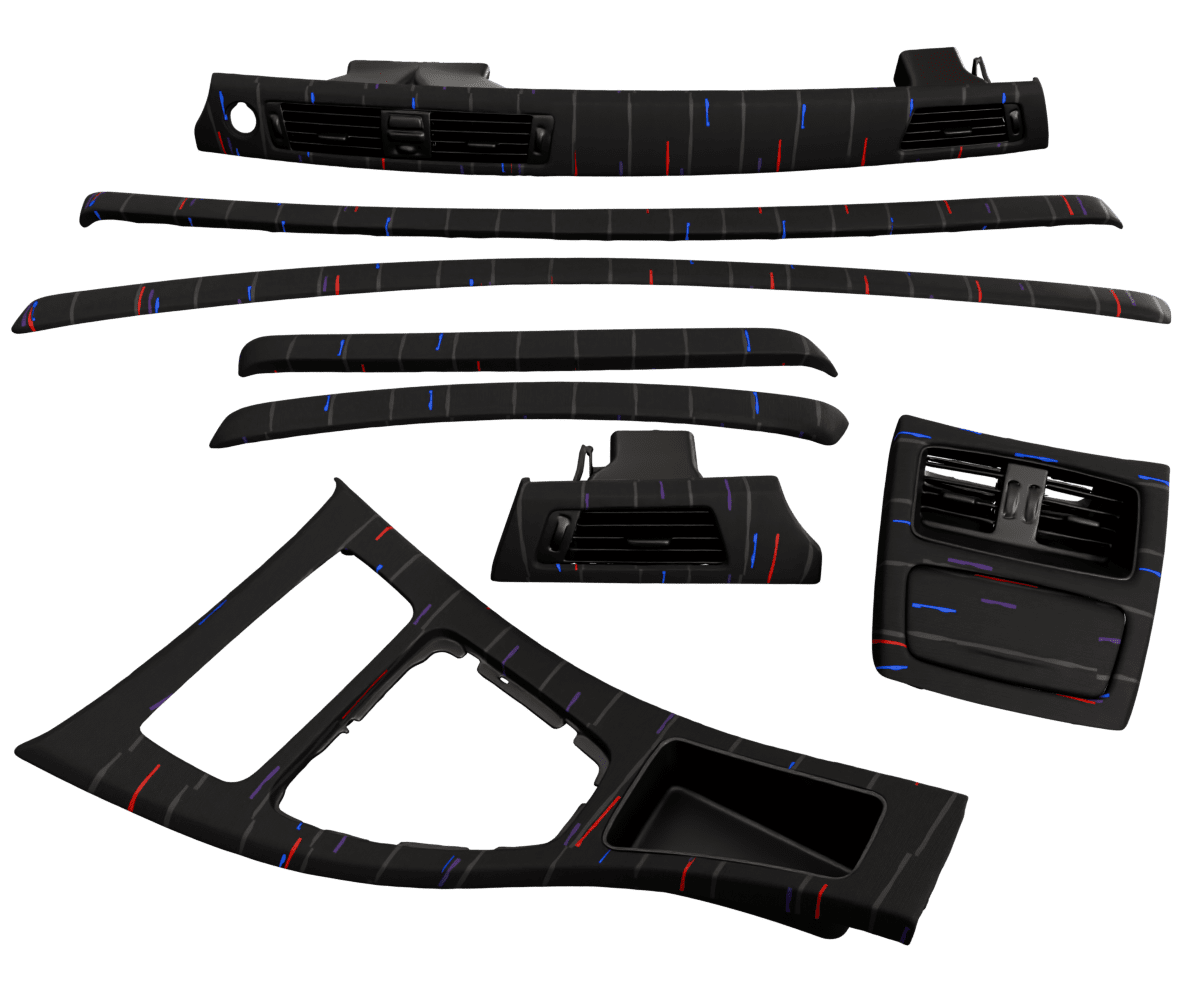

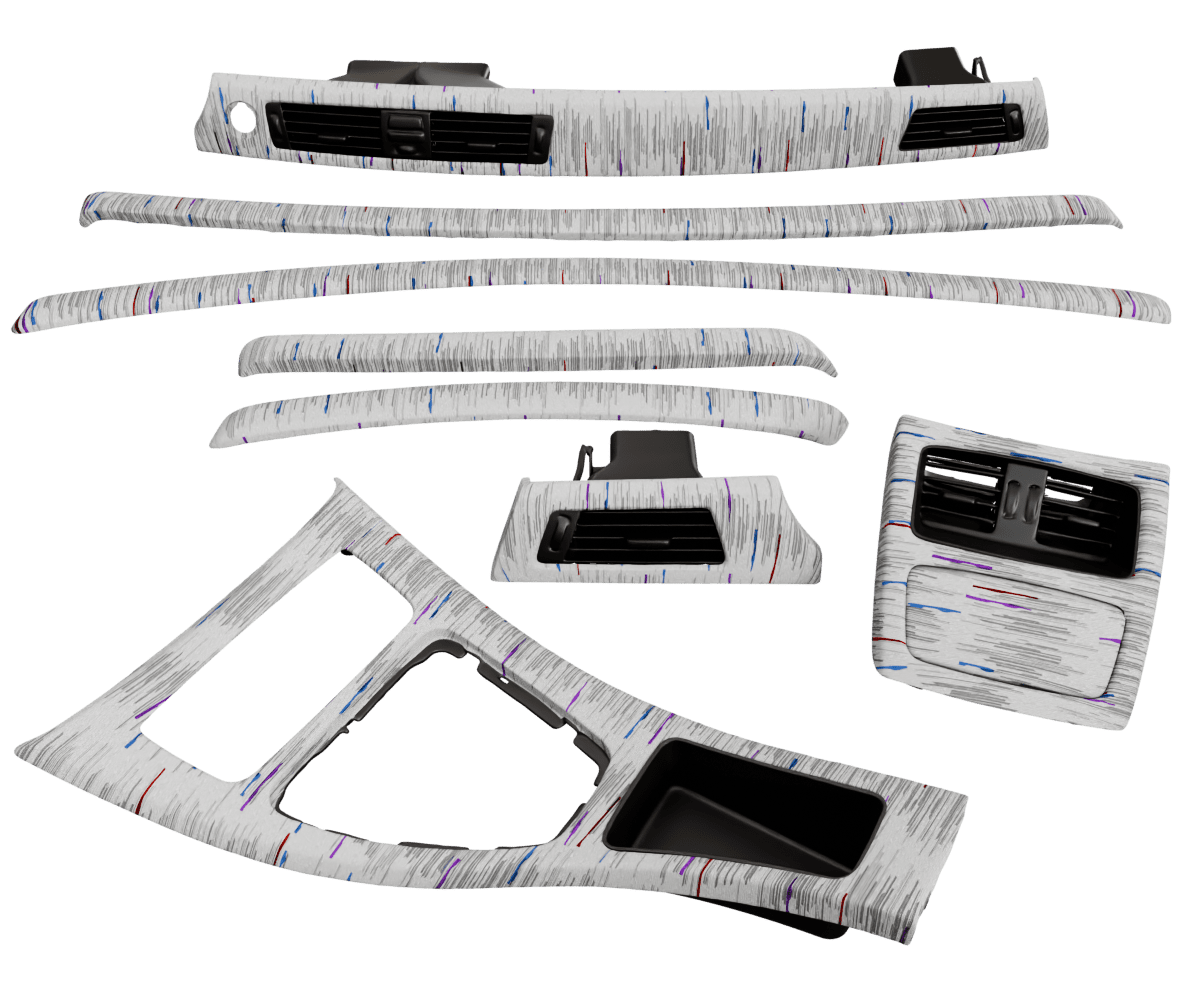

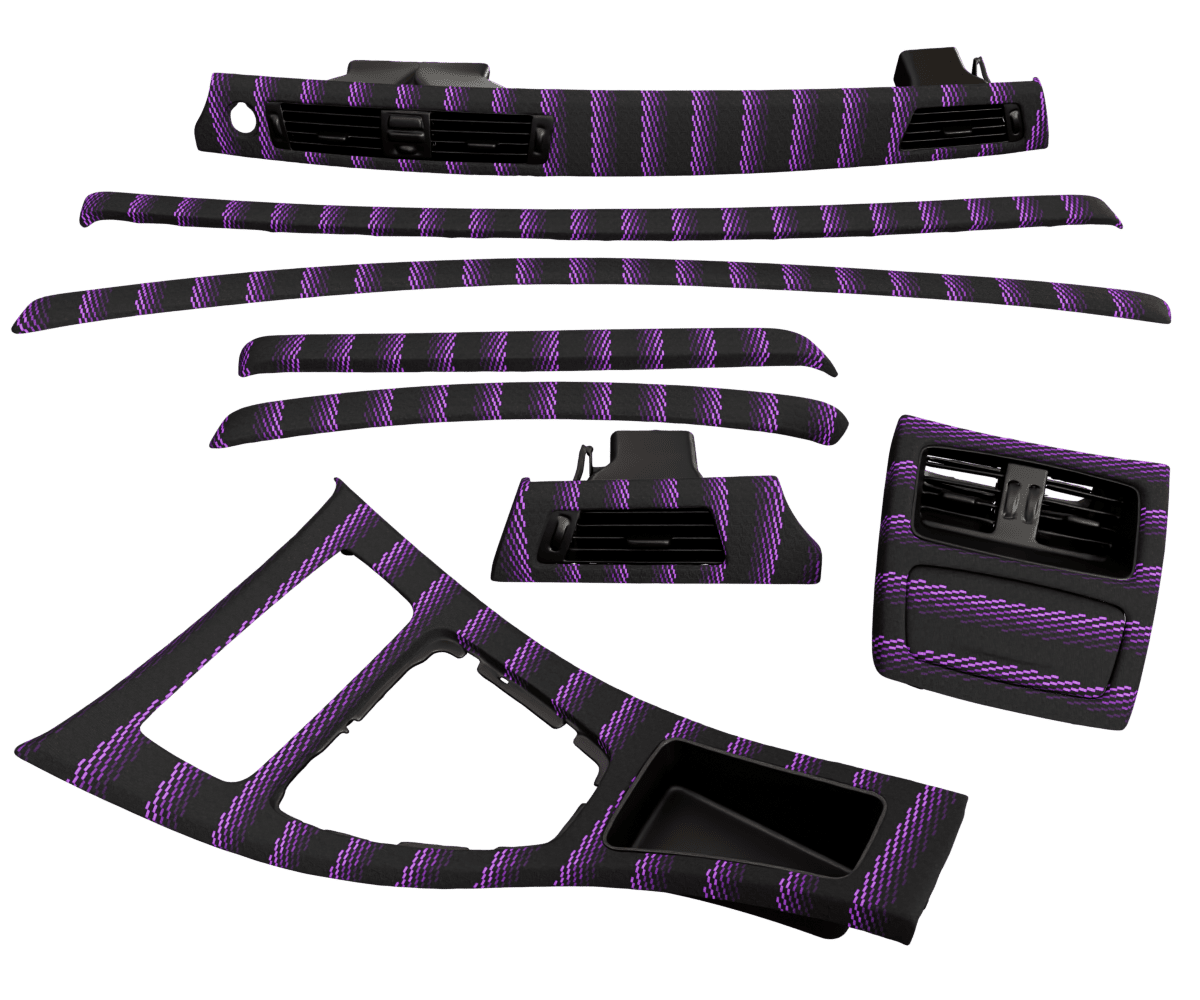

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

We produce custom-made replacements that retain OEM geometry while upgrading the surface finish. Your set can be wrapped in Alcantara, forged carbon, carbon fiber, or Nappa leather, color-matched to your interior, and finished in matte, satin, or gloss. Pieces reuse factory clips and hardware for a clean OEM+ result.

Installation tools needed

• Plastic trim removal toolkit (non-marring)
• T20 and T25 Torx drivers (some trims/hardware vary)
• Small flat pick or hook tool (for clip release)
• 1/4″ ratchet with 8 mm & 10 mm sockets (console fasteners)
• Microfiber towels and painter’s tape (protect surrounding panels)
• Isopropyl alcohol (final wipe before install)

OEM+ parts, Direct swap of OEM parts

All trims above are OEM references, and our custom sets are designed as direct-swap replacements. Because BMW issued multiple finish-specific numbers and mid-cycle changes, we validate each order against your VIN to ensure perfect fitment and the correct non-iDrive configuration.
